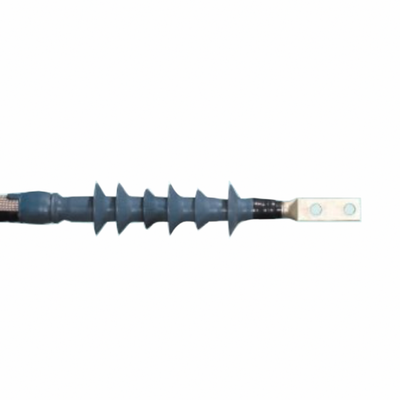

Medium Voltage Cold Shrink Termination Kit, Outdoor, Elaspeed, Cable Range 1/0-2/0 (5KV ) + #2 AWG (15KV)

Description

Indoor/Outdoor polymer terminations available for 5kV, 15KV, 25/28KV and 35KV applications. The Elaspeed outdoor PCT (with sheds) and indoor PICT (without sheds) are medium voltage cold shrink polymer terminations designed for fast, easy and reliable i nstallation. The Elaspeed terminations shrink evenly on the cable as the inner support core is removed. No complicated assembly or heat is required. Simply pull out the support core and allow the termination to shrink in order to create a tight void fr ee interface and superior moisture seal between the termination and the cable.

Features

• Covers provides a uniform stress relief in critical areas.
• Broad range of cable sizes and voltages with the fewest number of units.
• Meets or exceeds the stringent requirements mandated by the IEEE standard 48 for class 1 accuracy.

Cable Range:
1/0-2/0 (5KV 133%)
#2 AWG (15KV 133%)

Cable Insulation Diameter Range:
0.64"-1.12"

Number of Sheds:
4
