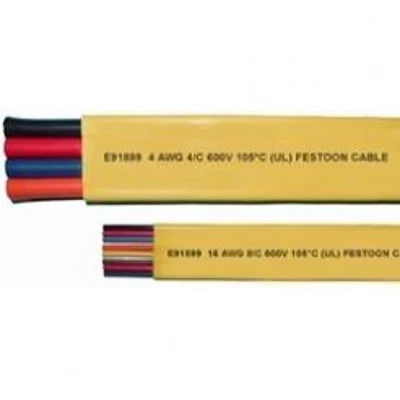

4/4 Yellow Flat Festoon Cable (PVC)

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25 ft. to maximum 1000 ft. Please call for longer put ups.

Color:
Yellow

Applications:
Flat Festoon Cable (PVC) is designed for coninuous flexing applications including festooning systems, cranes, hoists, track systems, conveyors & robots.

Features:
Oil and chemical resistant.  UV resistant. High flexibility. Small bending radius.  UL Listed and CSA Certified for indoor and outdoor use. -40°C-105°C

Standards:
UL VW-1, CSA FT4
UL/CSA Certified

Jacket Material:
PVC - Polyvinyl Chrloride

Conductor Material:
Bare Copper

Specifications*:

Size: 4 AWG
Number of Conductors: 4
Conductor Strand: 413
Insulation Thickness: 0.045 inches
Outside Diameter: 0.515 x 1.750
Weight: 0.896 lbs per ft
Voltage: 600V
