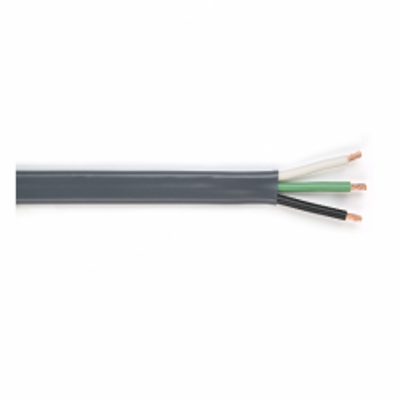

10/3 Triplex Brake Cable

Applications:
Three-conductor, general-purpose primary wires covered in a high quality PVC jacket. Especially ideal for use in truck, bus, tractor, light-duty boats, and general service applications. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128, SAE J378

Color Code:
3 Conductors: Black/Green/White

Specifications*:

Size: 10 Gauge
Conductors: 3
Number of Strands: 19/23
Jacket Color: Gray
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated at –30°C (–22°F) to 105°C (221°F)
Outside Diameter: 0.257 x 0.611 inches
Weight: .153 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
